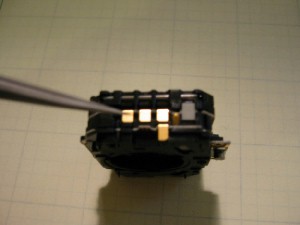

| The watch core has three pads for RS232 serial connectivity. |
|
|
|
|
||||
|---|---|---|---|---|---|
|

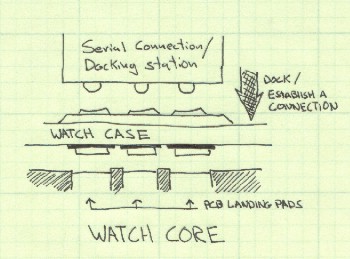

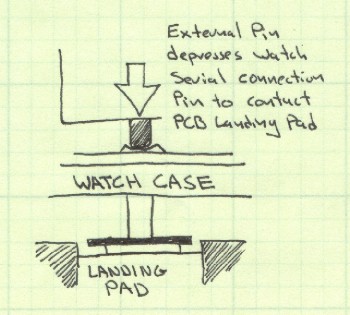

When docked the pins on the docking station press the spring loaded pins piercing the watch case into contact with the PCB pads. |
|---|---|
|
|

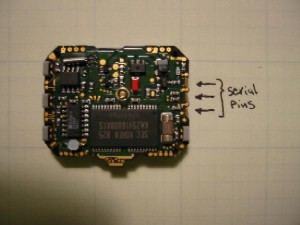

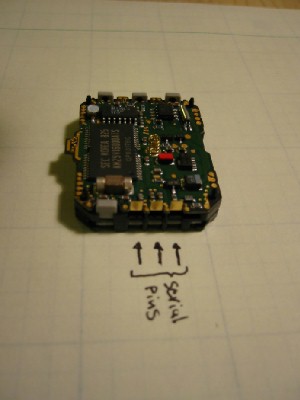

Shown left is the watches core board and the PCB landing pads. | |||
|---|---|---|---|---|---|
|
|

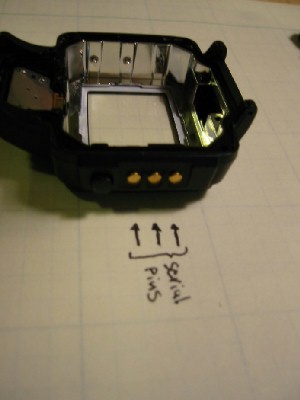

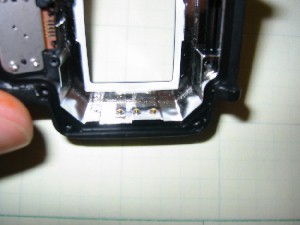

A better view of the case highlighting the serial connection. | |||
|---|---|---|---|---|---|
