So I was really just riding shotgun on this one but it was really fun and I think the information might be useful to others so I am going to put it up here anyway.

The Firewire controller on Wayne's laptop had been damaged by a voltage surge. The laptop could still see the controller chip but could not see the outside world. This was a huge problem as Wayne uses the Firewire for his research and for most of the demos of his past research.

Wayne isn't cheap; he's assistant director of the WCL and does not blink an eye at spending money. However the WCL works hard to earn its money and like to spend it wisely. When Dell wanted to charge $1100 for a replacement motherboard Wayne started looking at other options. When he found out that the chip that got fried only cost $5, well, Project Oxcart was born. (In case you came here interested in skunk works history the project name is homage).

Wayne and Ross actually researched the problem, ordered the chip, and were ready to go ahead with the project while I was out of the country; when I got back though they stepped aside to let me do the soldering. Neither one of them has an ego. Either could have done the work but I have a lot more experience with board rework then they do. Glad they got me involved, it was very fun, though I should come out and say that I was surprised just how well it turned out.

In case you are interested the microscope used was a Leica GZ-6.

Most people do not have a good idea of just how small these chips are. The TSB41AB1 chip we removed is pictured left next to an Australian five-cent piece. A coin about as large as an American dime. There are 64 pins on the chip, 16 on a side. While that is actually a pretty large package by today's standards it does get a little cramped working on it in the middle of a board populated with other parts.

To be honest though most of my worries came from the fact that after both Wayne and Ross deferred to me for the soldering it was a reputation thing and I absolutely did not want to make a mistake.

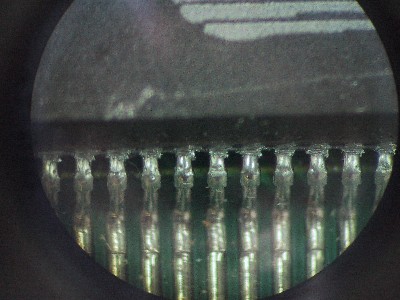

If you are not going to reuse the chip on another project I like to score the backs of the pins before I start removing the chip. This can be done with a razor blade run along the back of the pins using a slight pressure. This serves two purposes. First it marks the pin where it should bend back and second it cleans up any excess resin from the chip package. On the cheaper packages there can be a lot of excess making the pins hard to work with.

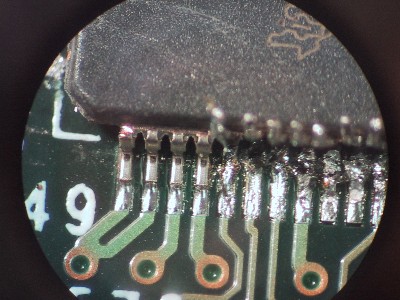

These pictures were taken midway through the removal. Each pad needs to be gently heated until the solder is molten. The color of the surface of the metal will change acquiring an almost rainbow effect. Once the metal is molten the pin is lifted back with a dental pick. It is critical at this stage that the pad not be either over or under heated. If the metal is not molten picking at the pin is likely to lift the track off the board and most likely ruin it. If the pad is too hot however the board can burn or be damaged in other ways ruining the pad. I recommend practicing a lot of scrap boards which you do not care about before even thinking of trying this on something live.

This picture was taken about half way through removing the chip. About two hours into the project. You can see the type of crap that can be generated. You want to make sure you clean all of this off of the board as even if it does not fry your board the next time power is applied it can migrate around the laptop over time and be cause of future failures.

About 2.5 hours to get to here. At least an hour of that time was spent warming up and practicing on scrap boards. I do not advise skipping the warm-up it will just cost you more time, if not a fried board, in the end.

I like to use a vacuum desolderer and a hot air pencil for board cleanup. I let the hot air flow out of the pencil, over the part I want to heat, and then back into the desolderer. Working on heavily populated areas of a board this helps to keep the heat contained to the area you want it in while still getting the benefits of using the hot air pencil over a metal tipped iron. My gut says there is a better way to do this but as of yet I have not figured it out yet.

With the chip removed and the pads cleaned of solder you want to go back and add the same amount of solder to each pad. We didn't use an ideal solder for the job as it had a high resin content.

I pick the resin off the board carefully with a dental pick with a rounded nose.

Once the resin has been broken up with a dental pick I go back and clean it up with a tooth brush and a small paint brush with stiff synthetic bristles. This works well for removing the resin, and it is also good for cleaning up the contamination I pointed out earlier. Use separate brushes though for the defluxing and for general cleanup. The flux makes the bristles sticky and after a point tends to just spread contaminates around the board.

When doing a project like this you need to check your ego at the door. Periodically, and after each step I would take a few minute break. During that time Ross would review my work and the board looking for things I might have missed. This is a good way to catch both simple and subtle errors. After seven hours of detail work one person can get a little fried. If you can get an extra set of eyes on your work I highly recommend it.

After about seven hours of soldering Ross and I tried not to hover too close as Wayne rebuild the laptop. Make sure you put the screws back in the right spot at this point as the laptop will have been apart for hours. Apparently two screws were swapped when the laptop was being reassembled and the slightly longer screw shorted out a resistor! Luckily nothing fried and it was an easy problem to fix.

At about 10:30 pm, in just under eight hours, the laptop was reassembled, and then we plugged in a Firewire camera. It worked perfectly the first time and we promptly took the team picture you see here. It was pretty cool to see. The next morning Wayne sent out this email to people in the lab announcing the projects completion.
